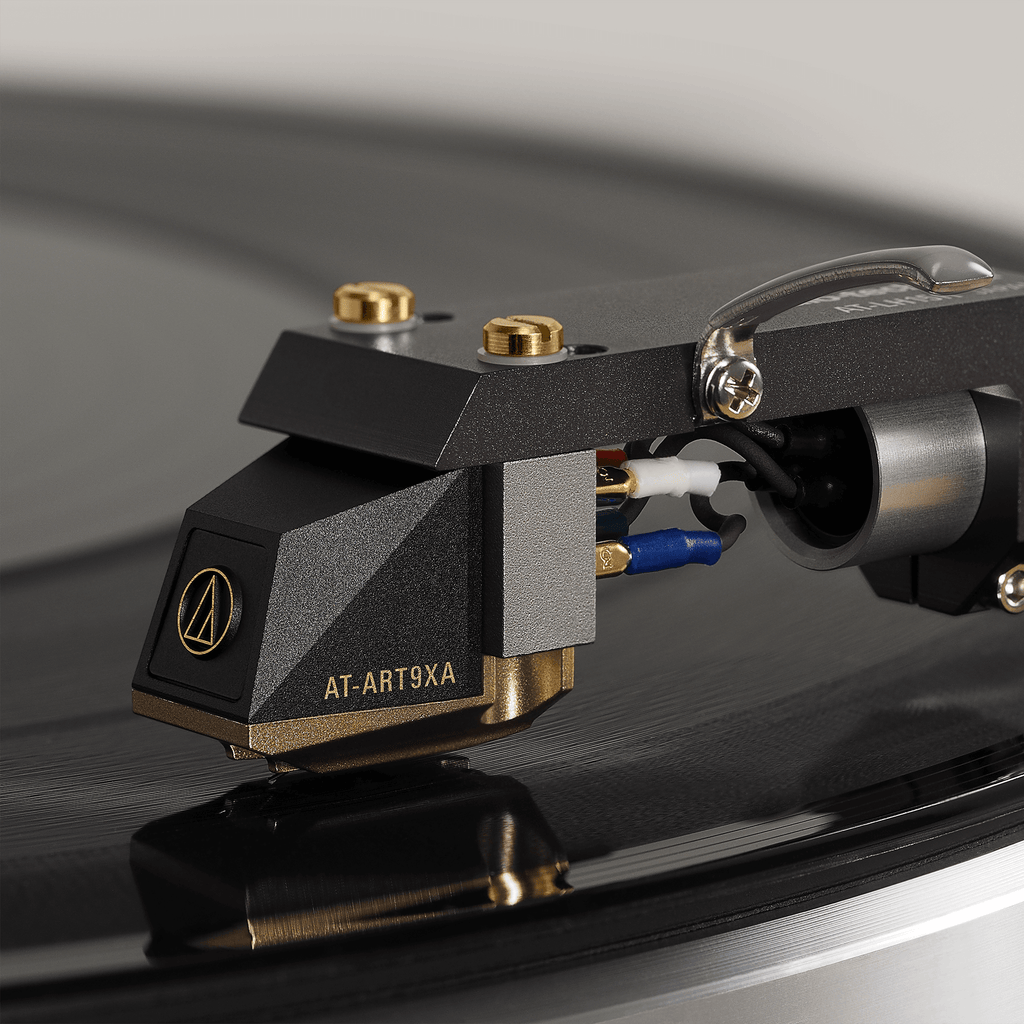

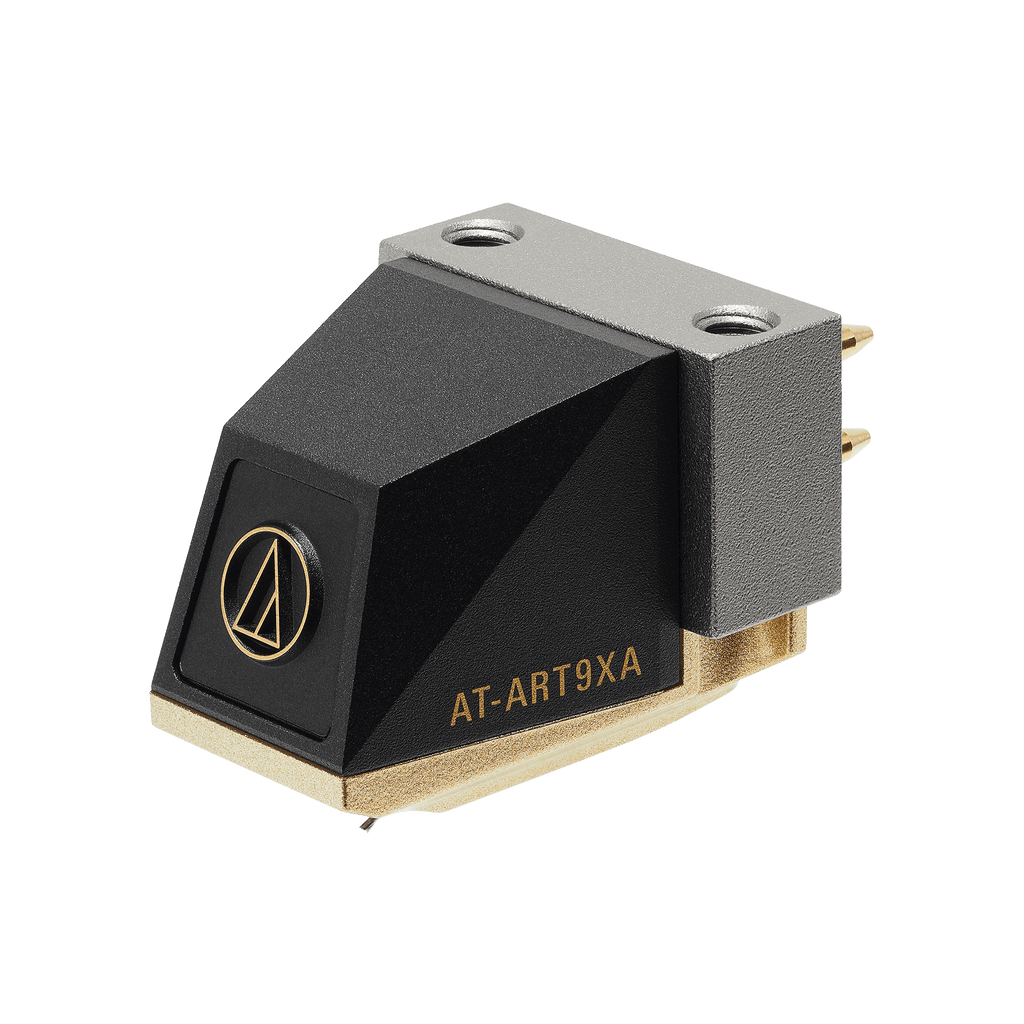

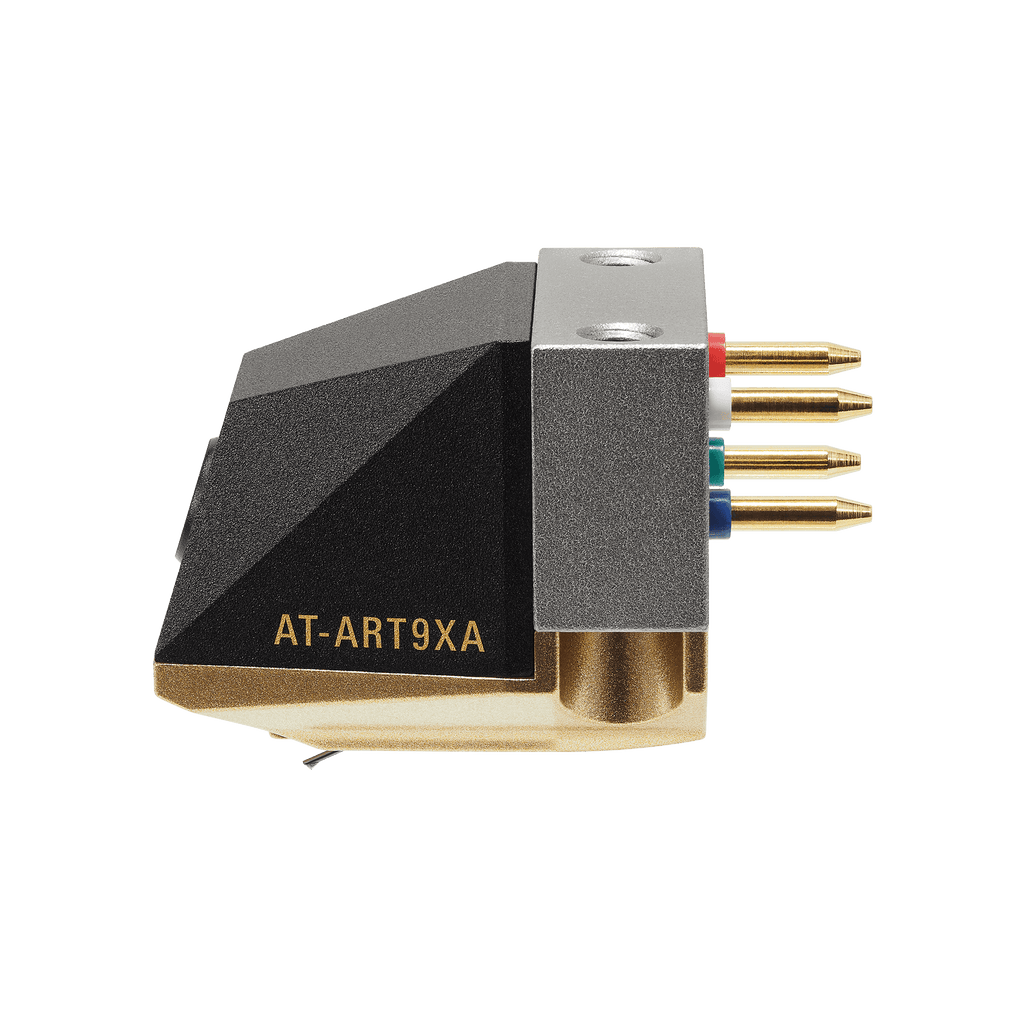

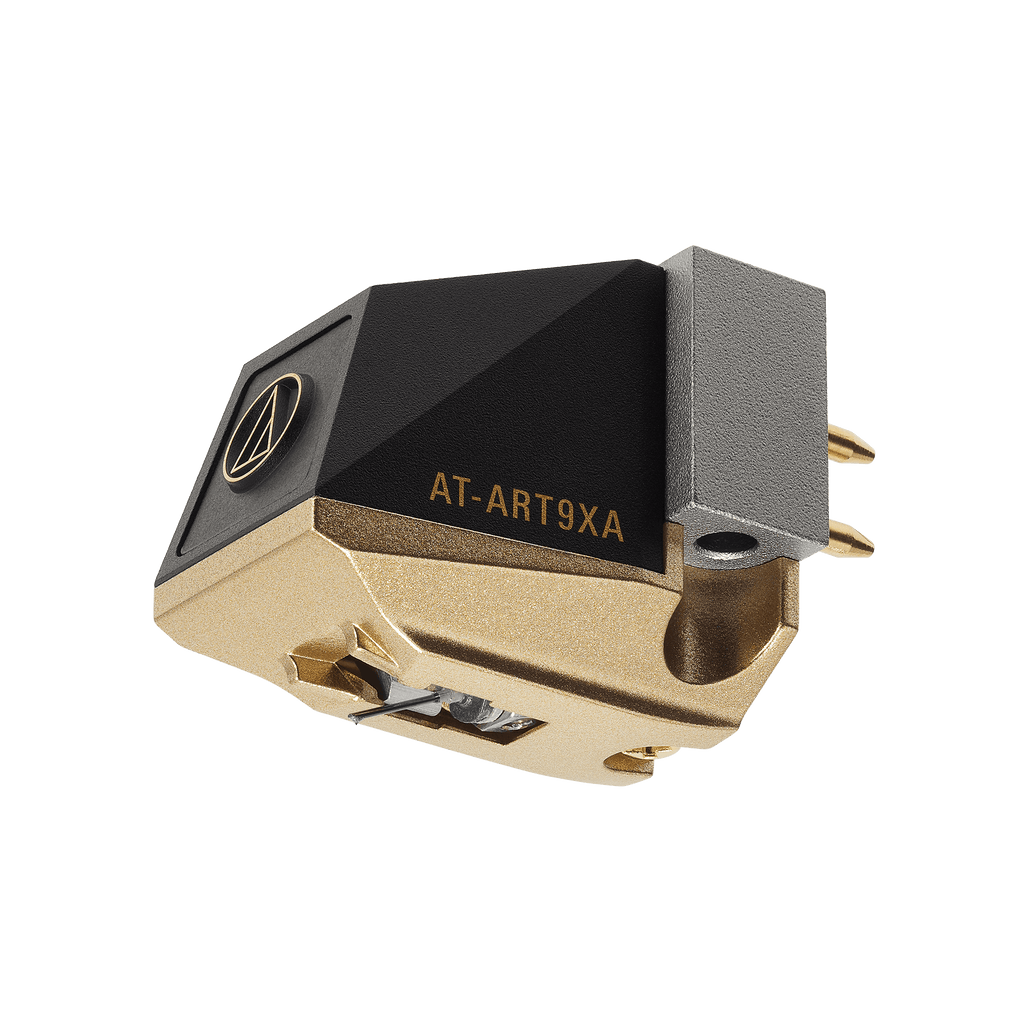

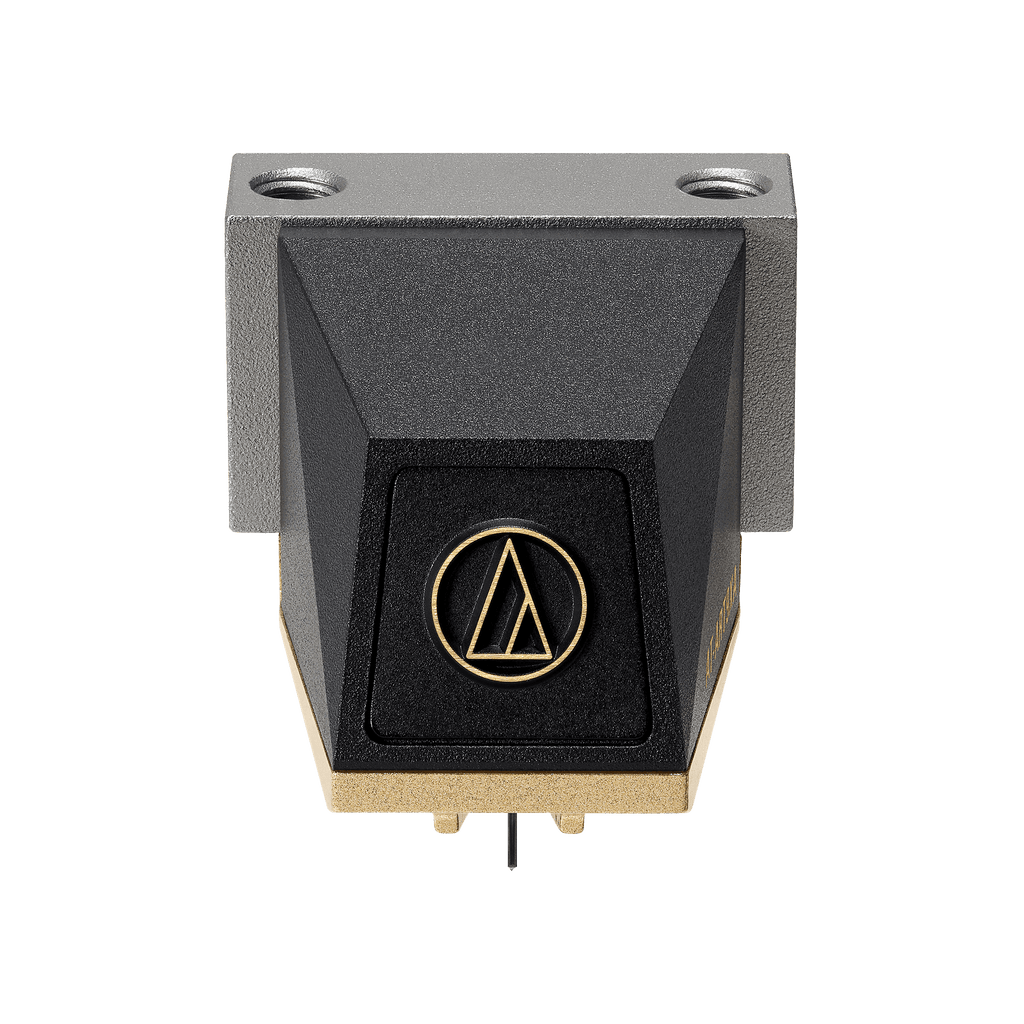

Audio-Technica AT-ART9XA Dual Moving Coil Cartridge (Non-Magnetic Core)

Experience ultimate refinement with Audio-Technica's AT-ART9XA, featuring a nude Special Line Contact stylus on solid boron cantilever for extraordinary groove contact, minimal distortion, and lifelike frequency extension. This non-magnetic core dual moving coil cartridge delivers 0.55 mV output with reference 30 dB channel separation through pure-iron yoke, neodymium magnets, and PCOCC coils for holographic imaging and dynamic precision.

Designed for standard headshell mounting with M2.6 threaded holes, it offers ultra-wide frequency response (20-50,000 Hz) in a multi-material resonance-free chassis.

Perfect for audiophiles seeking endgame transparency and soundstaging in a precision-engineered 8.9 g titanium/aluminum housing.

Key Features

• Nude Special Line Contact stylus for superior groove tracing

• Solid boron cantilever (0.26 mm diameter) for ultimate stiffness

• Non-magnetic core with enhanced magnetic circuit design

• PCOCC coils with neodymium magnets and pure-iron yoke

• Multi-material chassis (titanium/aluminum/elastomer) eliminates resonance

• Thick gold-plated pins for optimal signal transfer

• Threaded M2.6 holes for secure headshell mounting

Technical Specifications

• Type: Dual Moving Coil stereo cartridge (Non-Magnetic Core)

• Stylus: Nude Special Line Contact / boron cantilever

• Output Voltage: 0.55 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-50,000 Hz

• Channel Separation: 30 dB (1 kHz)

• Tracking Force: 1.6-2.0 g (1.8 g standard)

• Weight: 8.9 g
