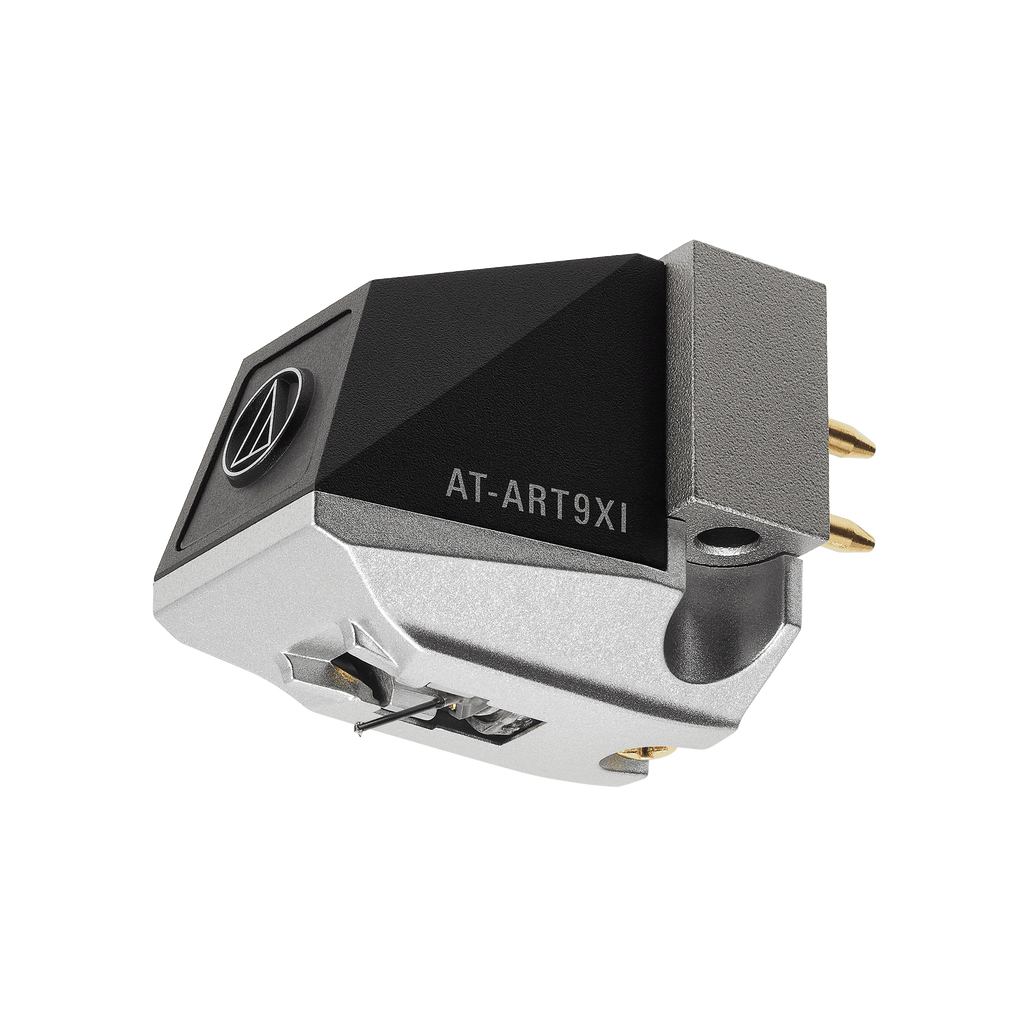

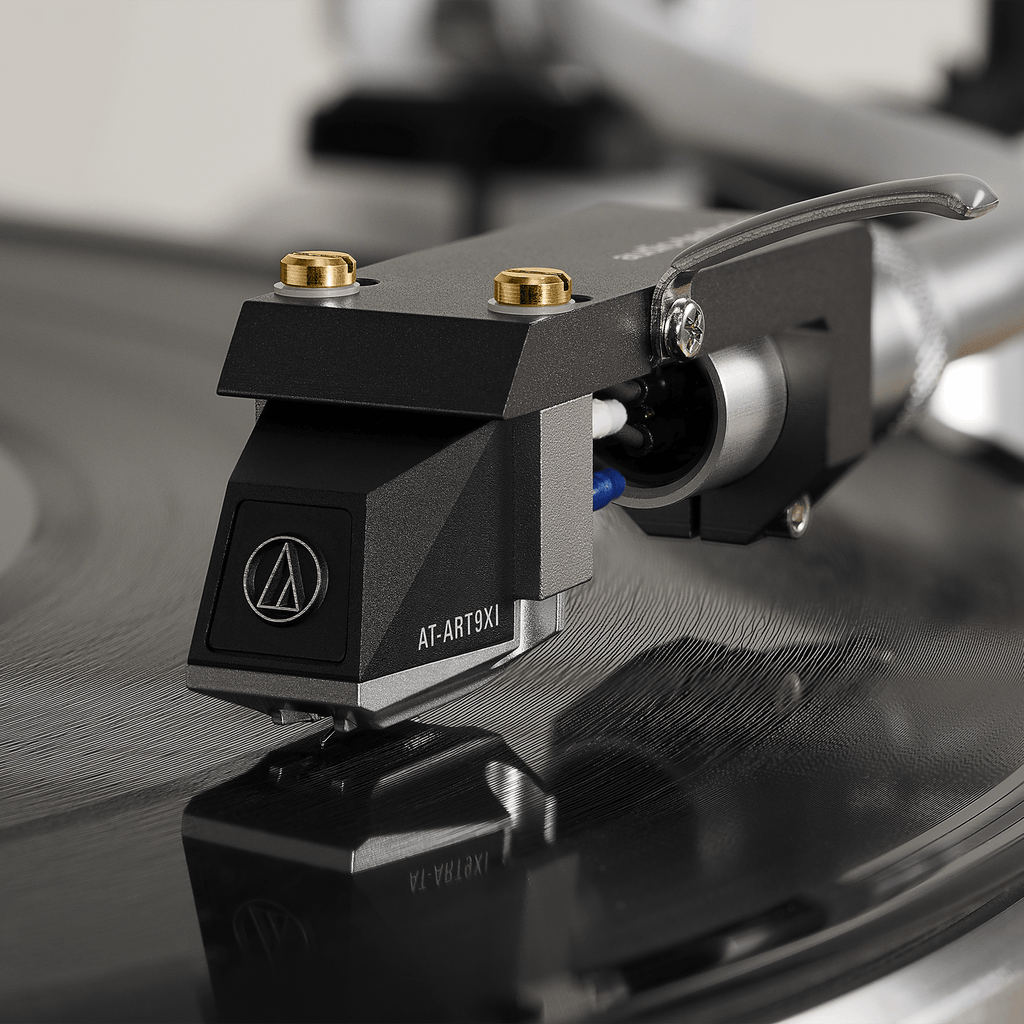

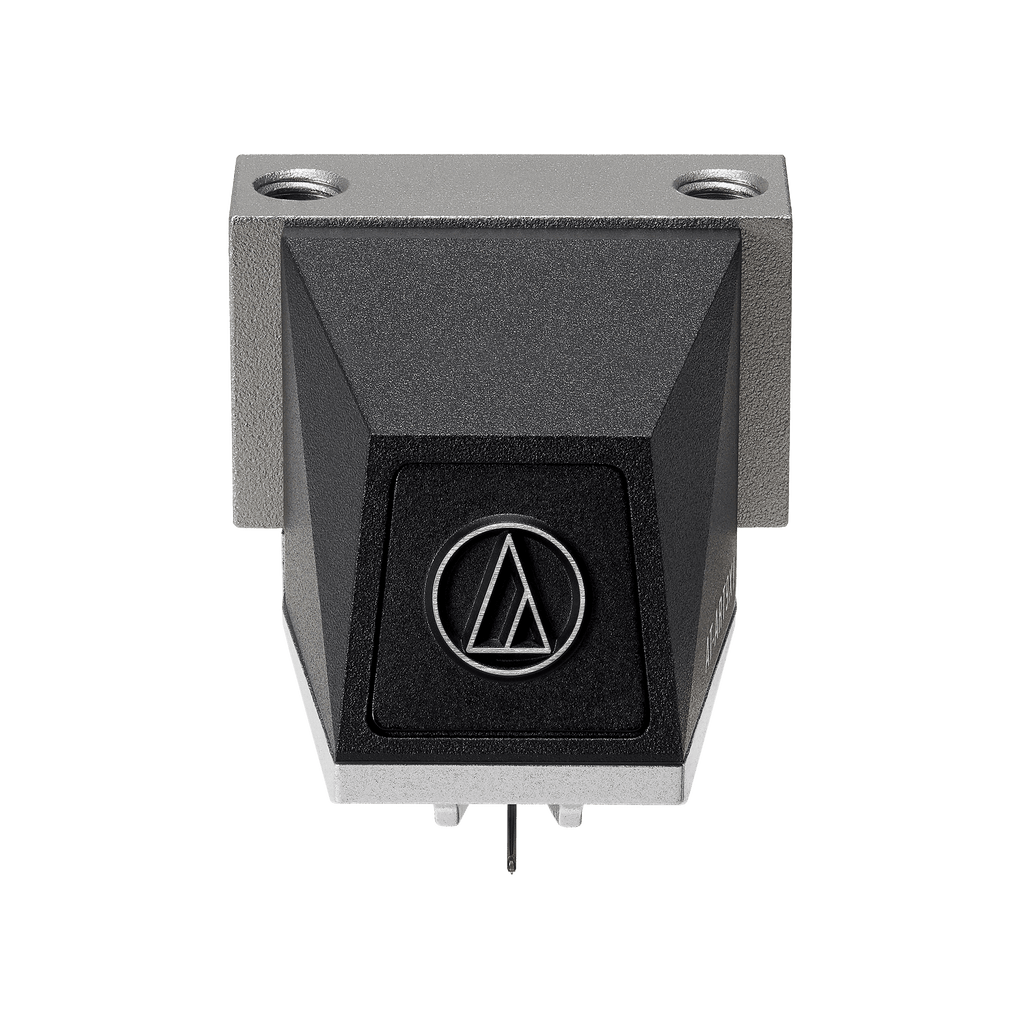

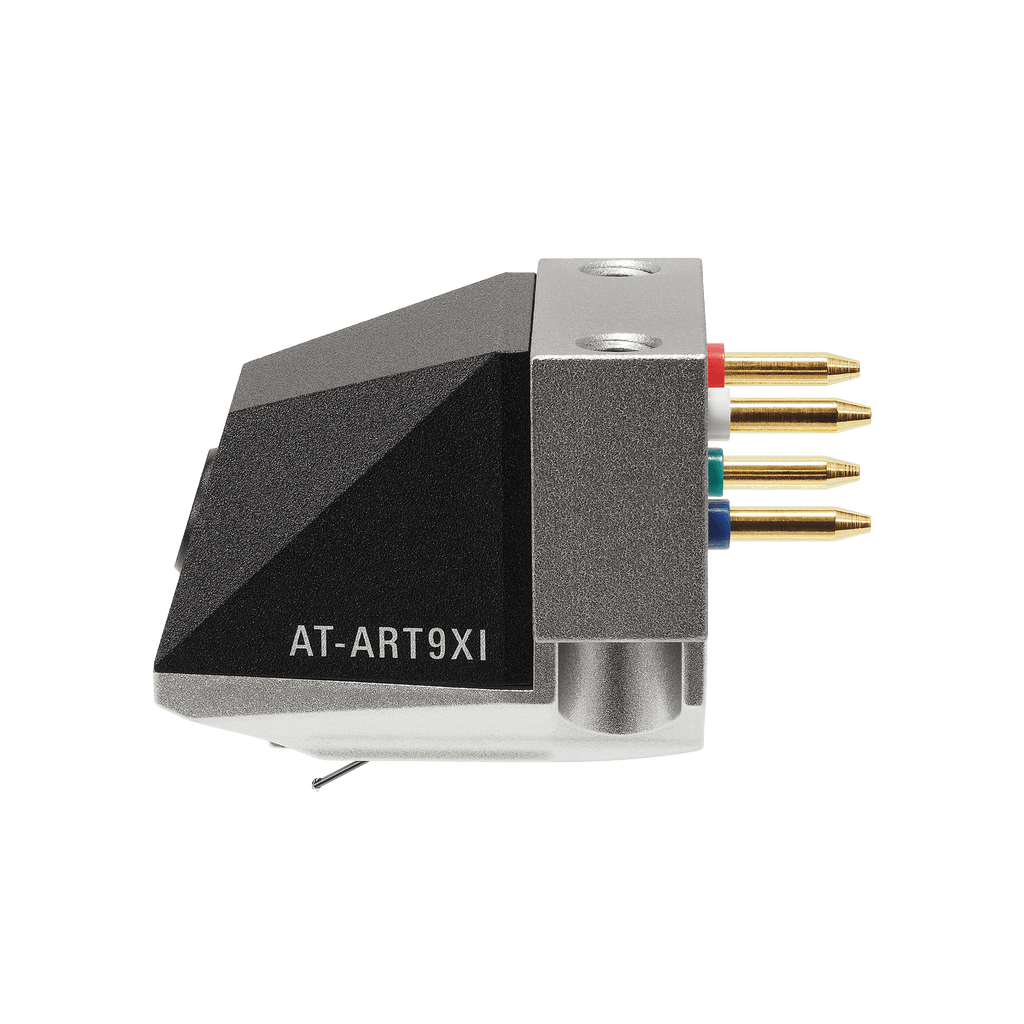

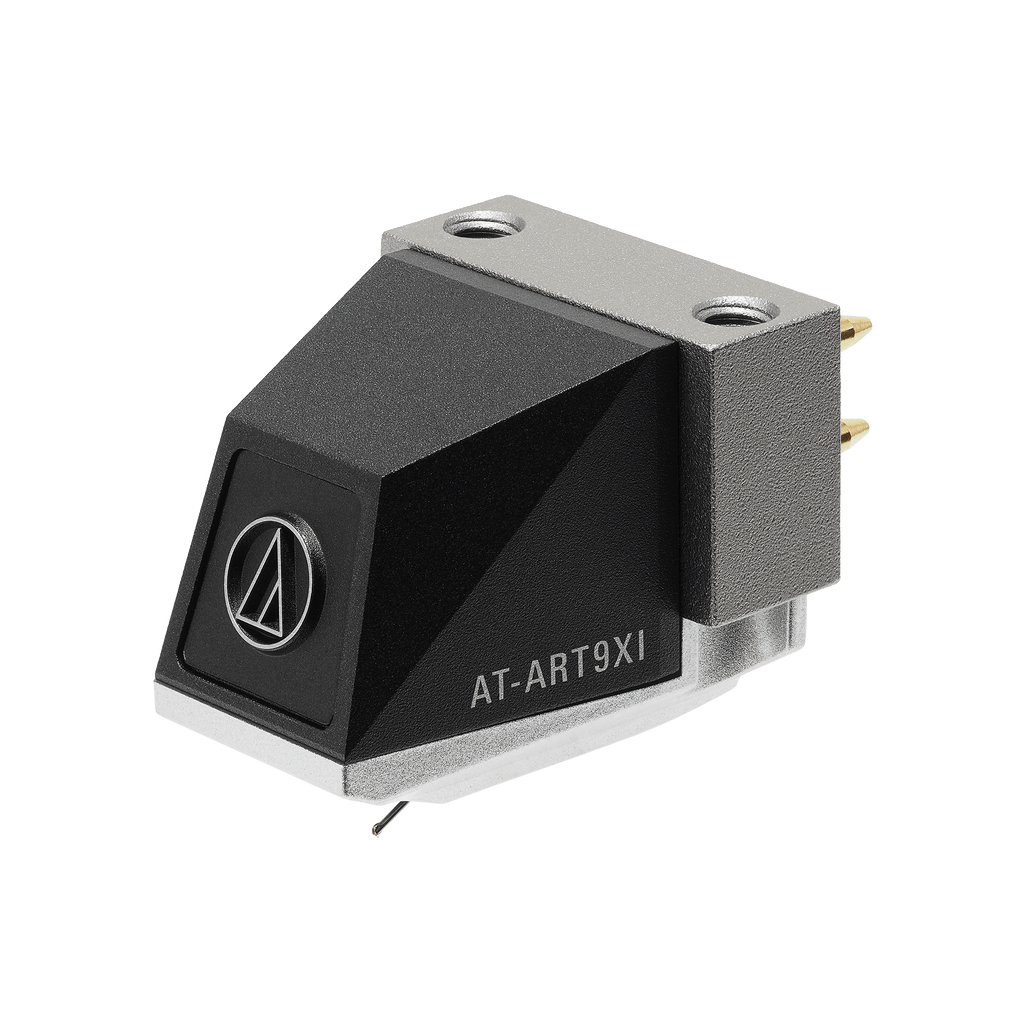

Audio-Technica AT-ART9XI Dual Moving Coil Cartridge

Masterclass vinyl reproduction with Audio-Technica's AT-ART9XI, featuring Special Line Contact stylus on 0.28 mm solid boron cantilever for exceptional groove fidelity, precise imaging, and airy high-frequency extension. This flagship magnetic core dual moving coil cartridge delivers 0.5 mV output with 30 dB channel separation through PCOCC coils in inverted V-formation, enhanced magnetic circuit, and machined aluminum base for dynamic transparency and soundstage precision.

Designed for standard headshell mounting with threaded M2.6 holes, it spans ultra-wide frequency response (20-50,000 Hz) with hybrid aluminum/plastic body minimizing resonance.

Ultimate reference for audiophiles pursuing lifelike detail and holographic imaging in an 8.9 g precision chassis.

Key Features

• Special Line Contact stylus for superior groove tracing

• Solid boron cantilever (0.28 mm diameter) for ultimate rigidity

• Dual PCOCC coils in inverted V-shape for maximum separation

• Enhanced magnetic circuit with increased energy density

• Machined aluminum base with hybrid resonance-free body

• Threaded M2.6 mounting holes for secure headshell installation

• Flagship performance with easy-drive output voltage

Technical Specifications

• Type: Magnetic Core Dual Moving Coil stereo cartridge

• Stylus: Special Line Contact / nude, solid boron cantilever

• Output Voltage: 0.5 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-50,000 Hz

• Channel Separation: 30 dB (1 kHz)

• Tracking Force: 1.6-2.0 g (1.8 g standard)

• Weight: 8.9 g
