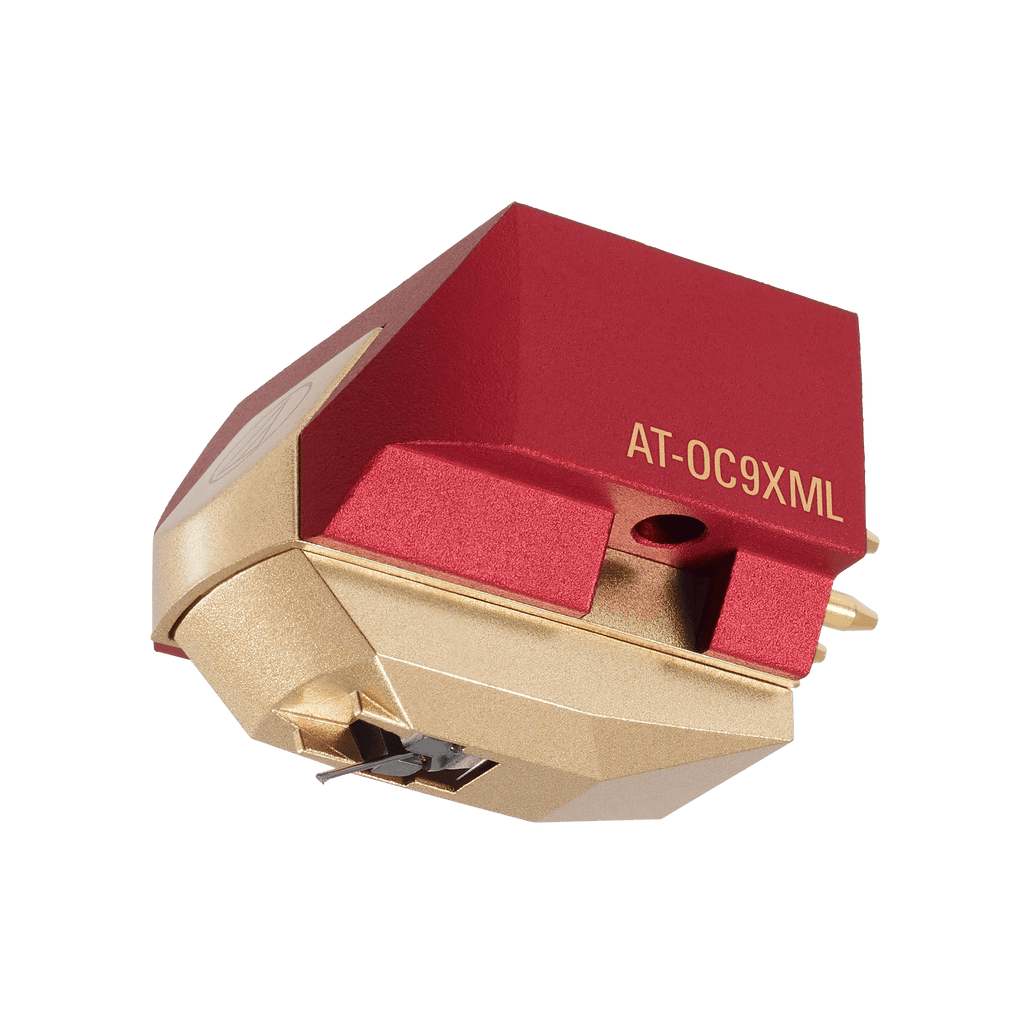

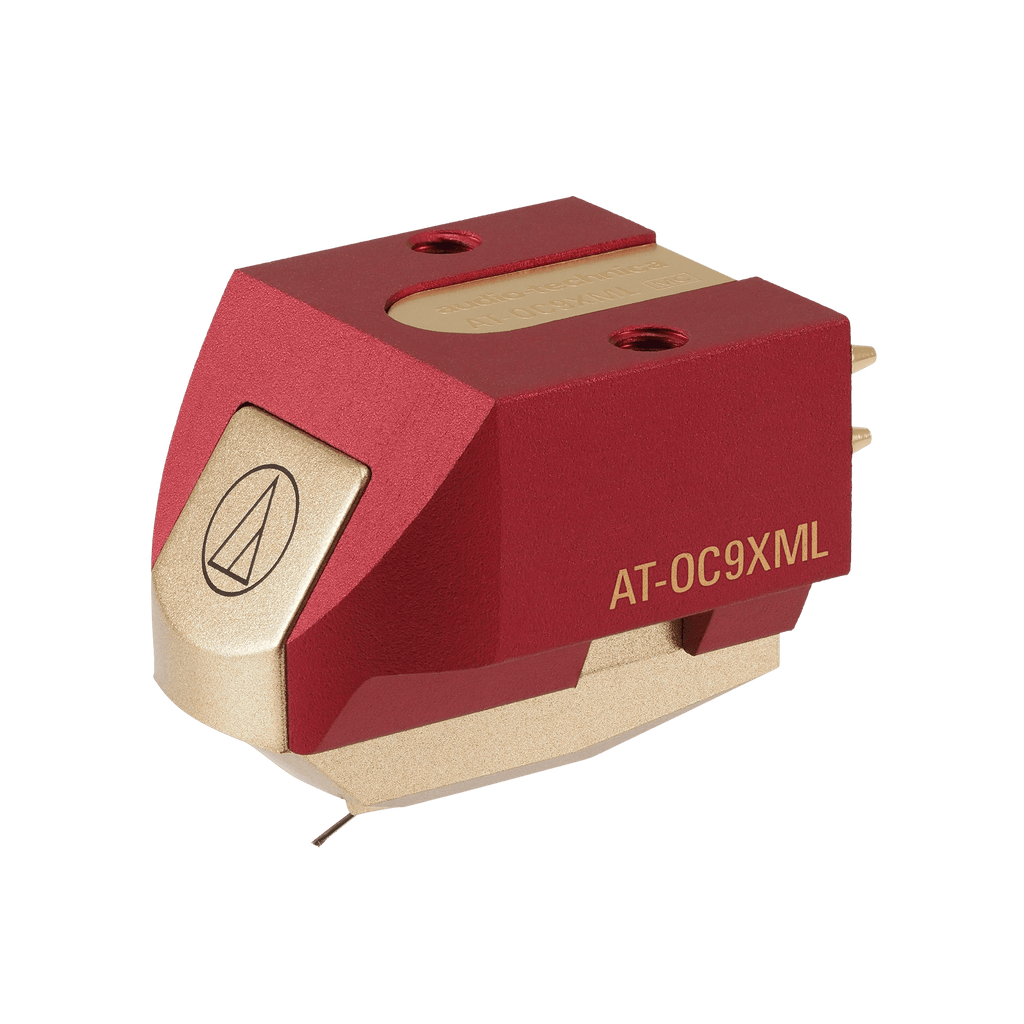

Audio-Technica AT-OC9XML Dual Moving Coil Cartridge

Elevate your vinyl experience with Audio-Technica's AT-OC9XML, featuring a MicroLine stylus for ultimate groove contact, minimal record wear, and extraordinary high-frequency extension with precise imaging. This dual moving coil cartridge delivers 0.4 mV output through neodymium magnets, pure-iron yoke, and PCOCC coils in reverse V-formation, providing holographic soundstaging and lifelike dynamics.

Compatible with 1/2-inch mount turntables via pre-threaded aluminum body, it excels with wide frequency response (20-50,000 Hz) and low-impedance design (min. 100 Ohm load). Moving coil compatible phono preamp required.

Perfect for audiophiles pursuing reference-level detail and accuracy in a precision-engineered 7.6 g housing. theaudio+1

Key Features

• MicroLine stylus for superior tracking and extended highs

• Dual moving coil design with independent left/right channels

• PCOCC coils in reverse V-formation for ultra-low distortion

• Aluminum cantilever and body for resonance-free playback

• Neodymium magnet and pure-iron yoke for powerful magnetic field

• Pre-threaded inserts for secure 1/2-inch mounting

• Exceptional channel separation and transient response

Technical Specifications

• Type: Dual Moving Coil stereo cartridge

• Stylus: MicroLine / nude square shank

• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-50,000 Hz

• Channel Separation: 27 dB (1 kHz)

• Tracking Force: 1.8-2.2 g (2.0 g standard)

• Weight: 7.6 g
