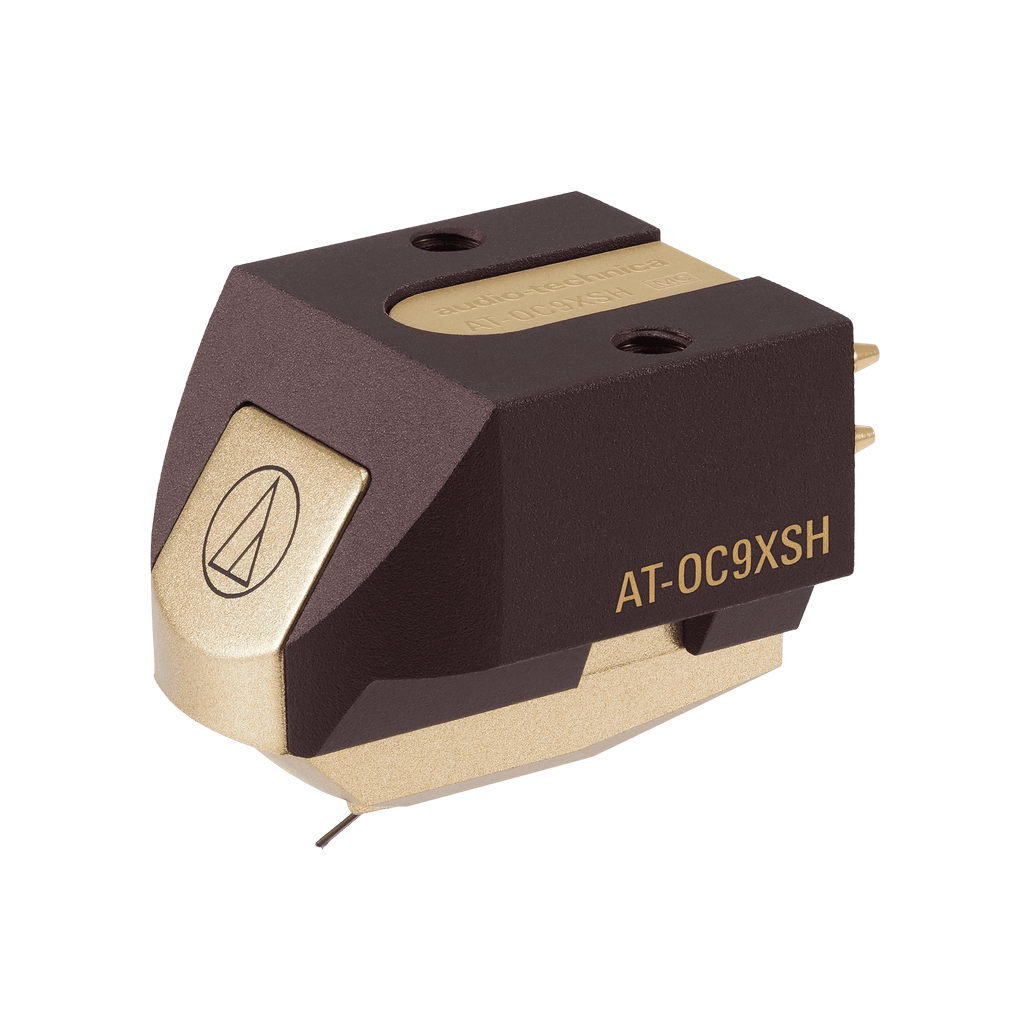

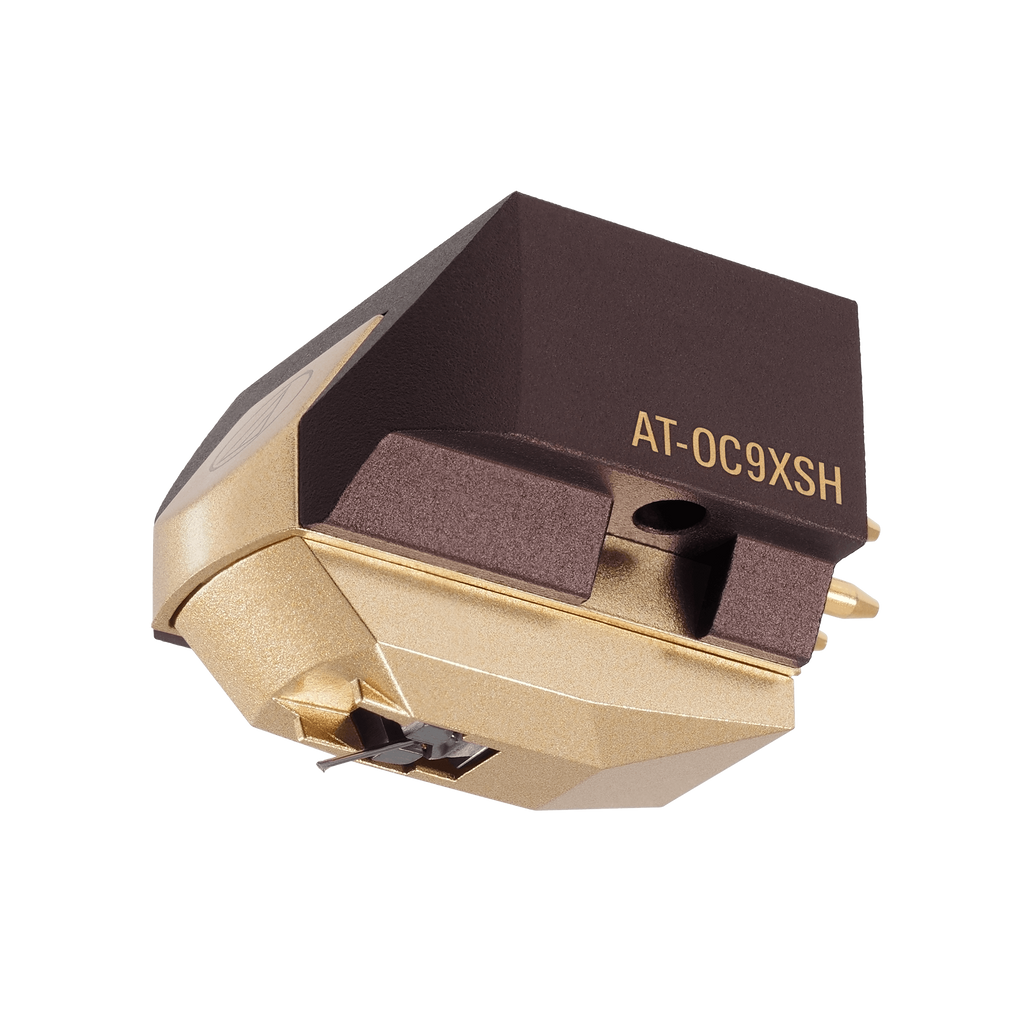

Audio-Technica AT-OC9XSH Dual Moving Coil Cartridge

Unleash detailed vinyl reproduction with Audio-Technica's AT-OC9XSH, featuring a nude Shibata stylus (2.7 x 0.26 mil) on boron cantilever for exceptional inner-groove tracking, wide soundstage, and superior high-frequency extension. This dual moving coil cartridge delivers 0.4 mV output with 27 dB channel separation through PCOCC coils in reverse V-formation, neodymium magnets, and permendur yoke for pure, dynamic audio performance.

Compatible with 1/2-inch mount turntables via pre-threaded aluminum body, it offers ultra-wide frequency response (20-47,000 Hz) and low-impedance design (min. 100 Ohm load). Moving coil phono preamp required.

Perfect for audiophiles seeking holographic imaging and transient speed in a rigid 7.6 g low-resonance housing.

Key Features

• Nude Shibata stylus (2.7 x 0.26 mil) for advanced groove contact

• Dual moving coil design with independent left/right channels

• PCOCC coils in reverse V-formation for minimal distortion

• Boron cantilever for superior transient response and stiffness

• Neodymium magnet and permendur yoke for enhanced magnetic energy

• Pre-threaded aluminum body for easy 1/2-inch mounting

• Outstanding channel separation and full-range reproduction

Technical Specifications

• Type: Dual Moving Coil stereo cartridge

• Stylus: Nude Shibata / square shank

• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-47,000 Hz

• Channel Separation: 27 dB (1 kHz)

• Tracking Force: 1.8-2.2 g (2.0 g standard)

• Weight: 7.6 g
