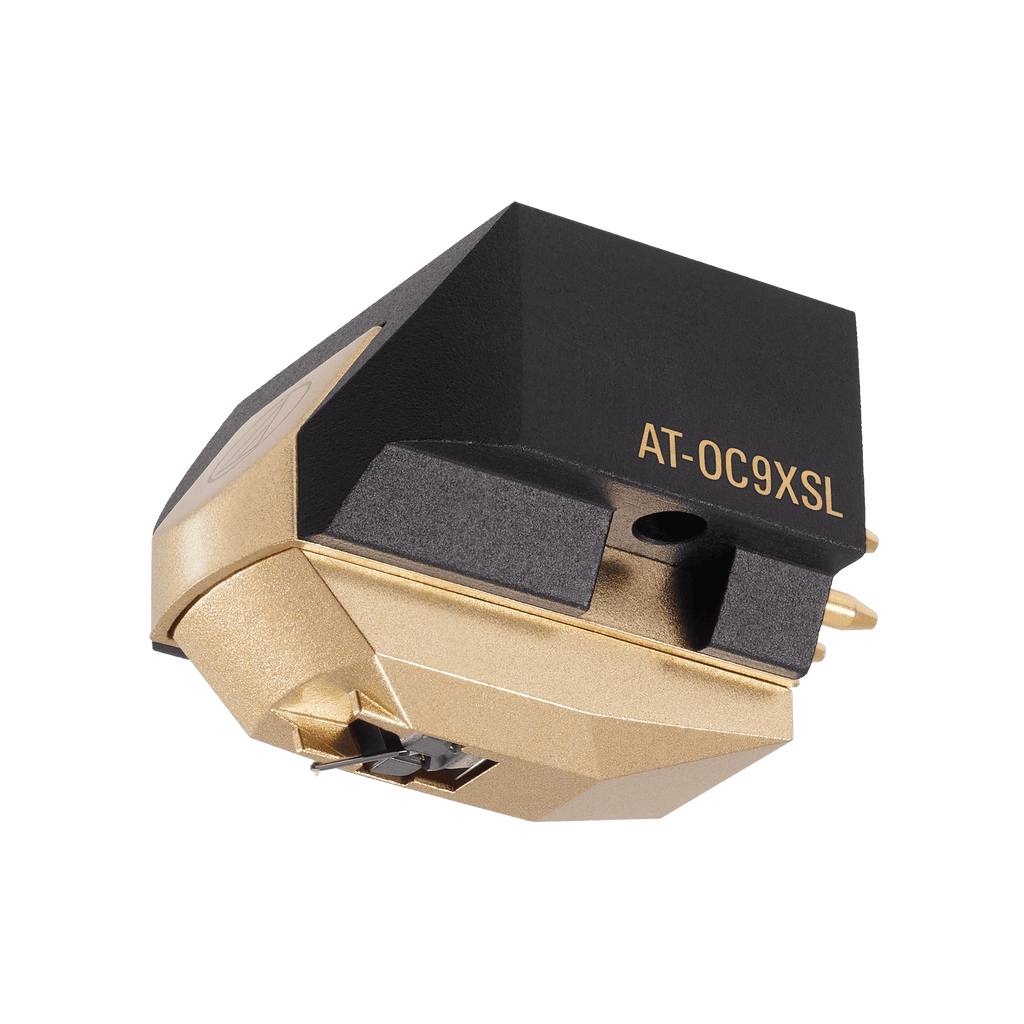

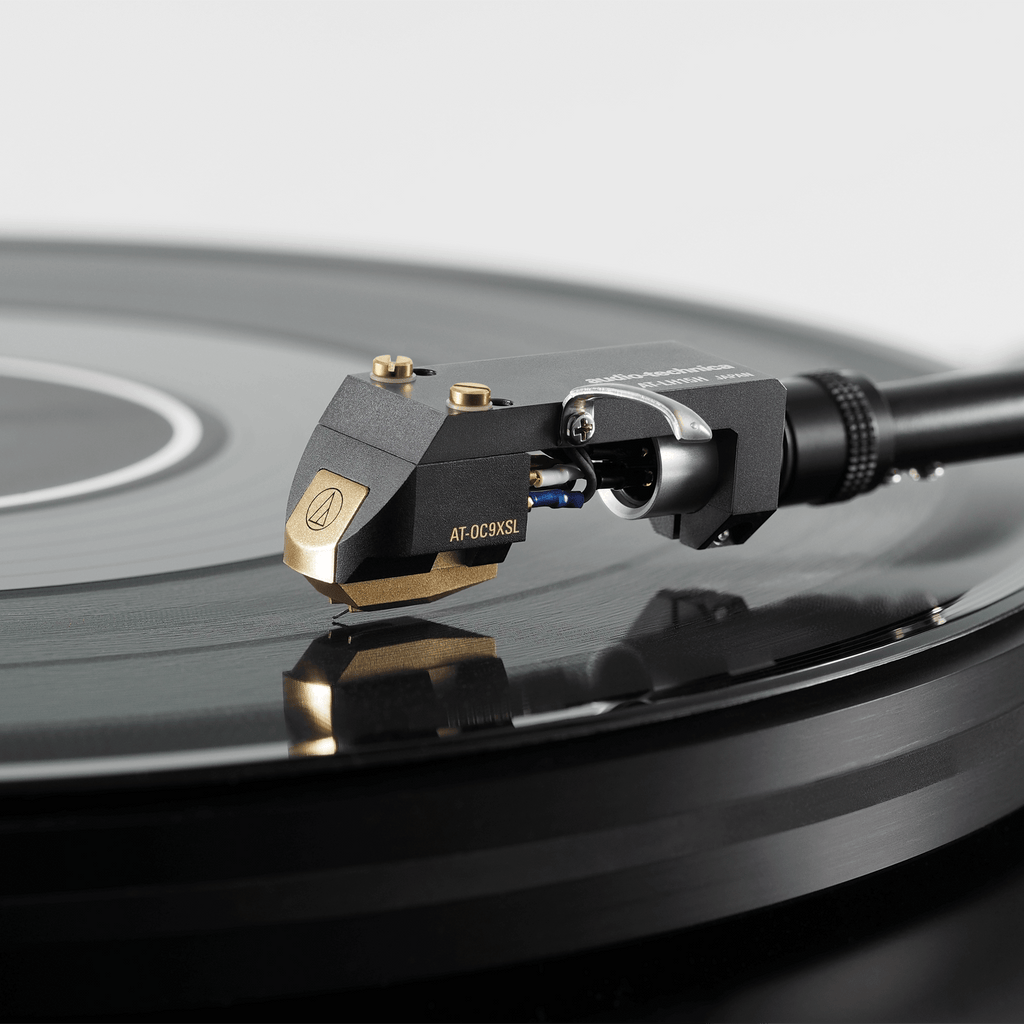

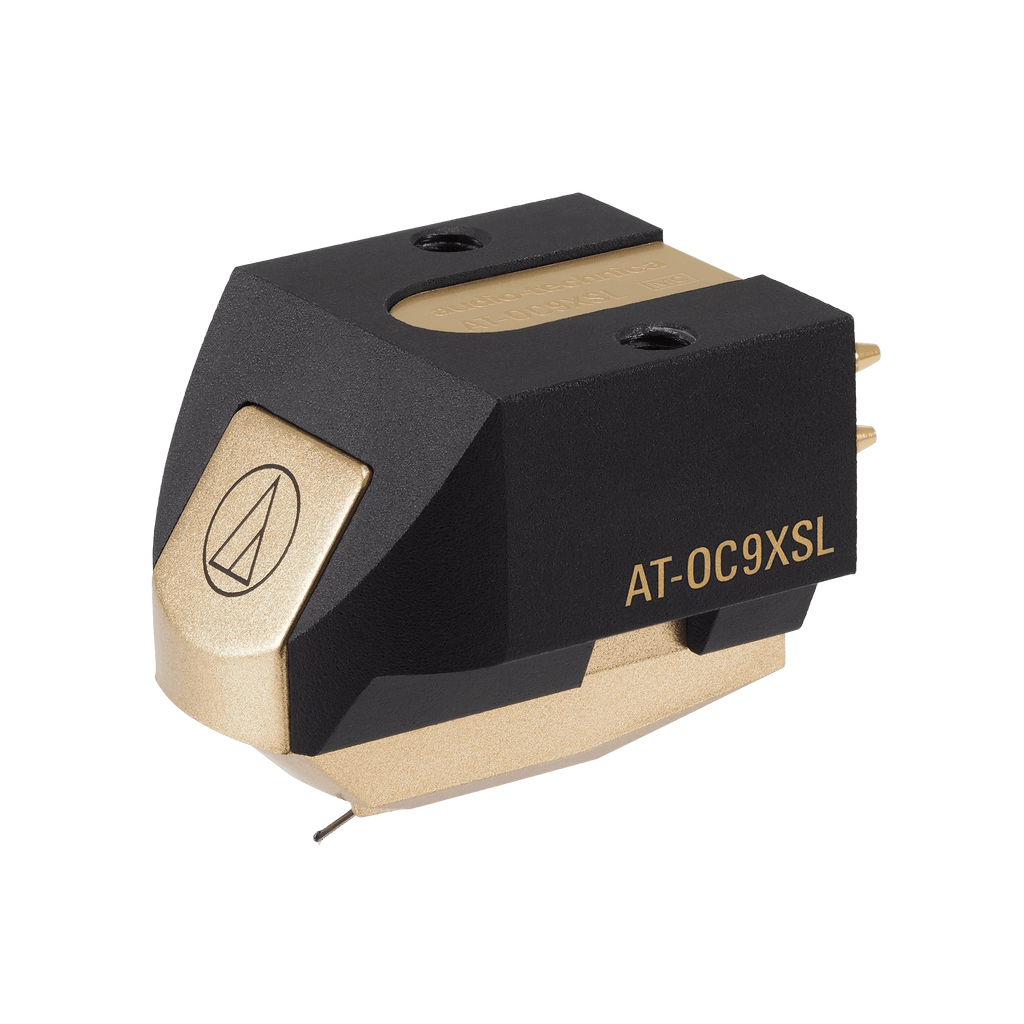

Audio-Technica AT-OC9XSL Dual Moving Coil Cartridge

Achieve reference-level vinyl playback with Audio-Technica's AT-OC9XSL, featuring a nude Special Line Contact stylus on boron cantilever for ultimate groove tracing, minimal inner-groove distortion, and breathtaking high-frequency air. This dual moving coil cartridge delivers 0.4 mV output with exceptional 28 dB channel separation through PCOCC coils in reverse V-formation, neodymium magnets, and permendur yoke for holographic imaging and explosive dynamics.

Compatible with 1/2-inch mount turntables via pre-threaded aluminum body, it spans ultra-wide frequency response (20-50,000 Hz) with low-impedance design (min. 100 Ohm load). Moving coil phono preamp required.

Perfect for audiophiles demanding ultimate resolution and soundstaging in a precision 7.6 g low-resonance housing.

Key Features

• Nude Special Line Contact stylus for superior groove contact

• Dual moving coil design with independent left/right channels

• PCOCC coils in reverse V-formation for ultra-low distortion

• Boron cantilever for lightning-fast transient response

• Neodymium magnet and permendur yoke for maximum magnetic energy

• Pre-threaded aluminum body for effortless 1/2-inch mounting

• Reference-grade channel separation and frequency extension

Technical Specifications

• Type: Dual Moving Coil stereo cartridge

• Stylus: Nude Special Line Contact / rectangular shank

• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-50,000 Hz

• Channel Separation: 28 dB (1 kHz)

• Tracking Force: 1.8-2.2 g (2.0 g standard)

• Weight: 7.6 g
