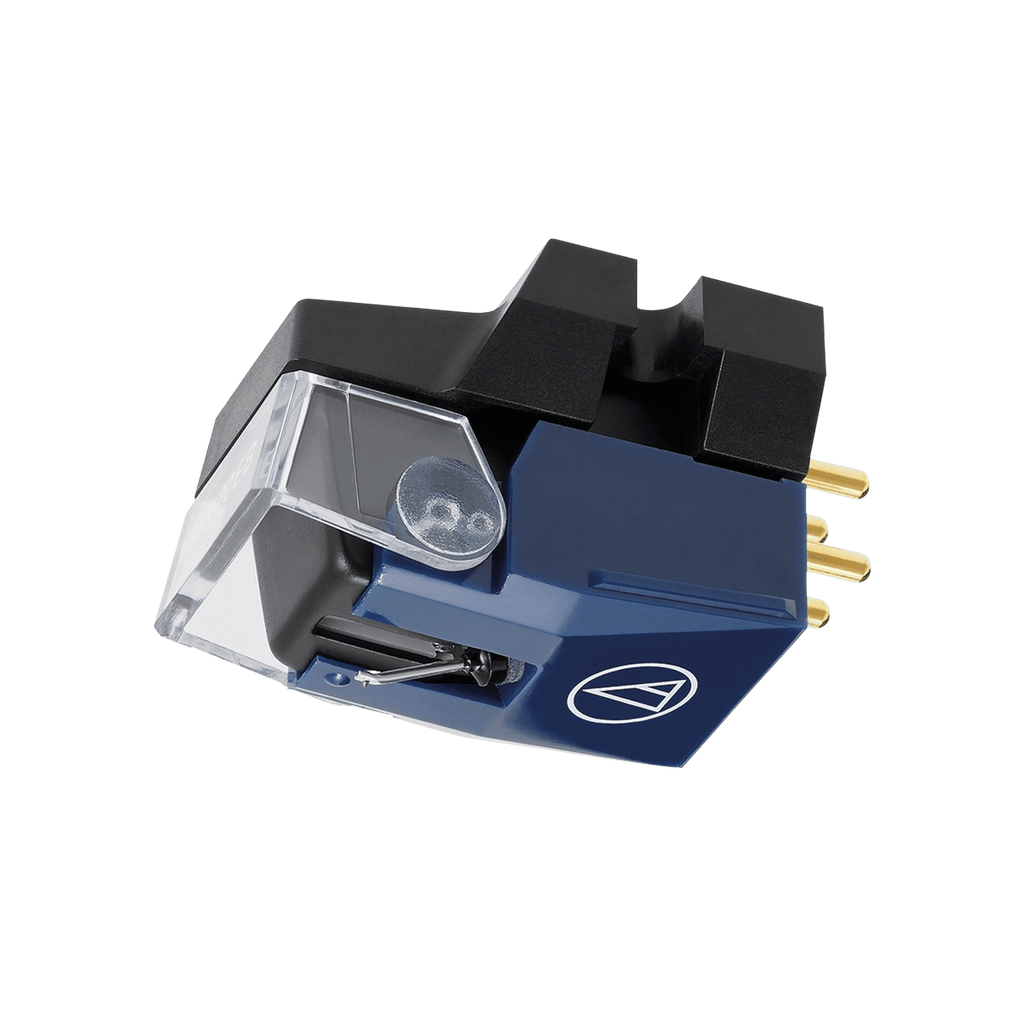

VM520EB Dual Moving Magnet Cartridge
Audio-Technica VM520EB features a precision 0.3 x 0.7 mil elliptical stylus for exceptional groove tracking and extended high-frequency response up to 23kHz. Dual magnet design delivers 4.5mV output with 27dB channel separation for clear stereo imaging and balanced soundstage.

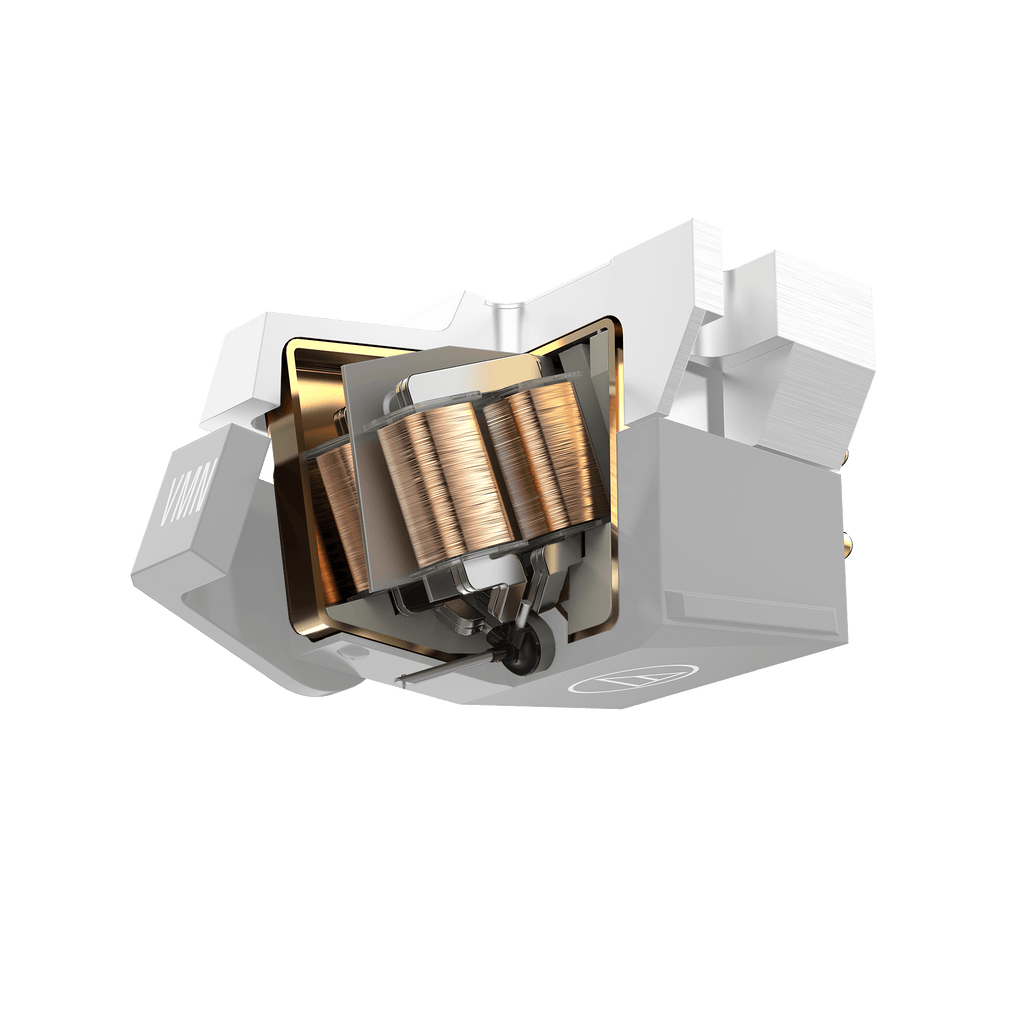

Aluminum cantilever and para-toroidal coils reduce distortion while the center shield plate minimizes crosstalk. Durable polymer housing fits standard 1/2-inch mounts with easy VM stylus interchangeability (VMN20EB replacement).

Key Features

• Elliptical stylus (0.3 x 0.7 mil) for detailed playback

• 4.5mV high output with 27dB separation

• Aluminum cantilever for low resonance

• Para-toroidal coils enhance efficiency

• Center shield plate reduces crosstalk

• Threaded 1/2-inch mount compatibility

Technical Specifications

• Type: VM Dual Magnet (Moving Magnet)

• Stylus: 0.3 x 0.7 mil elliptical bonded

• Output Voltage: 4.5 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-23,000 Hz

• Channel Separation: 27 dB (1 kHz)

• Tracking Force: 1.8-2.2 g (2.0 g standard)

• Weight: 6.4 g

• Replacement Stylus: VMN20EB
