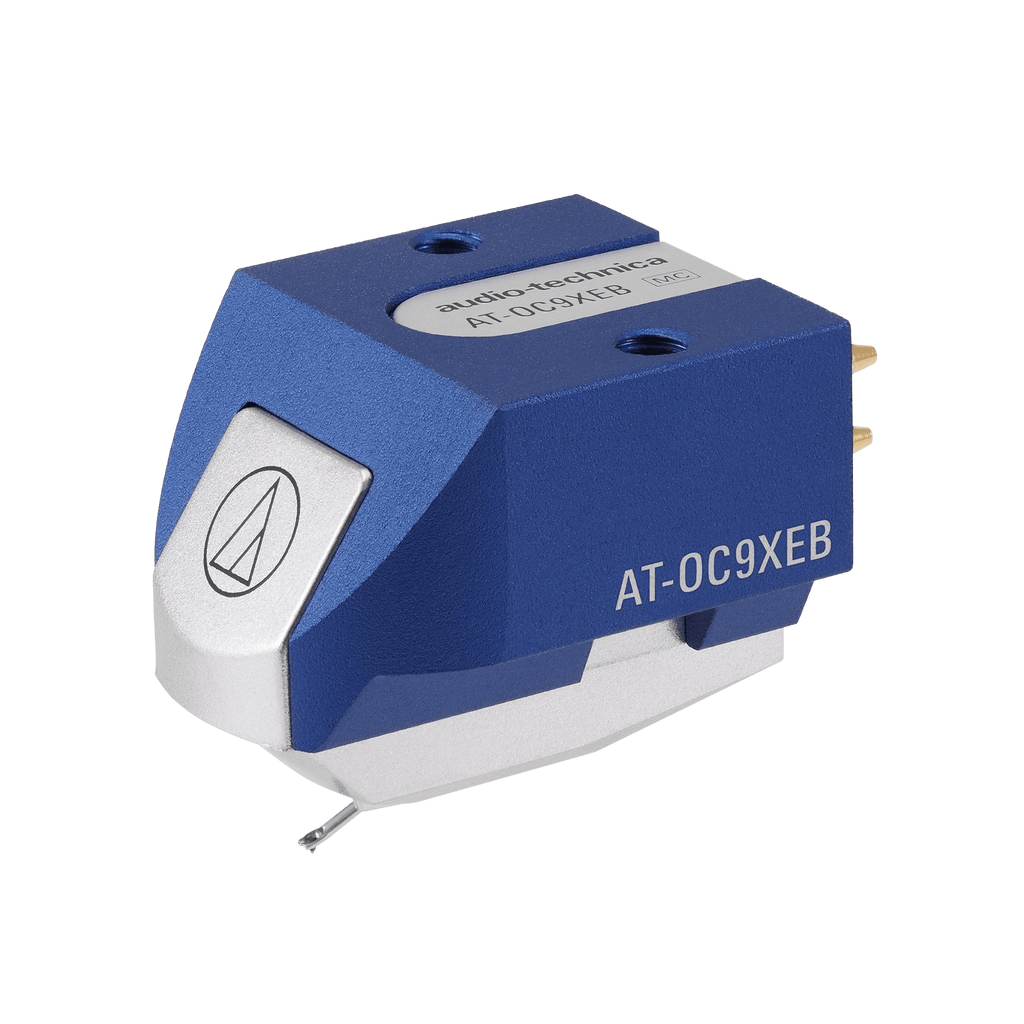

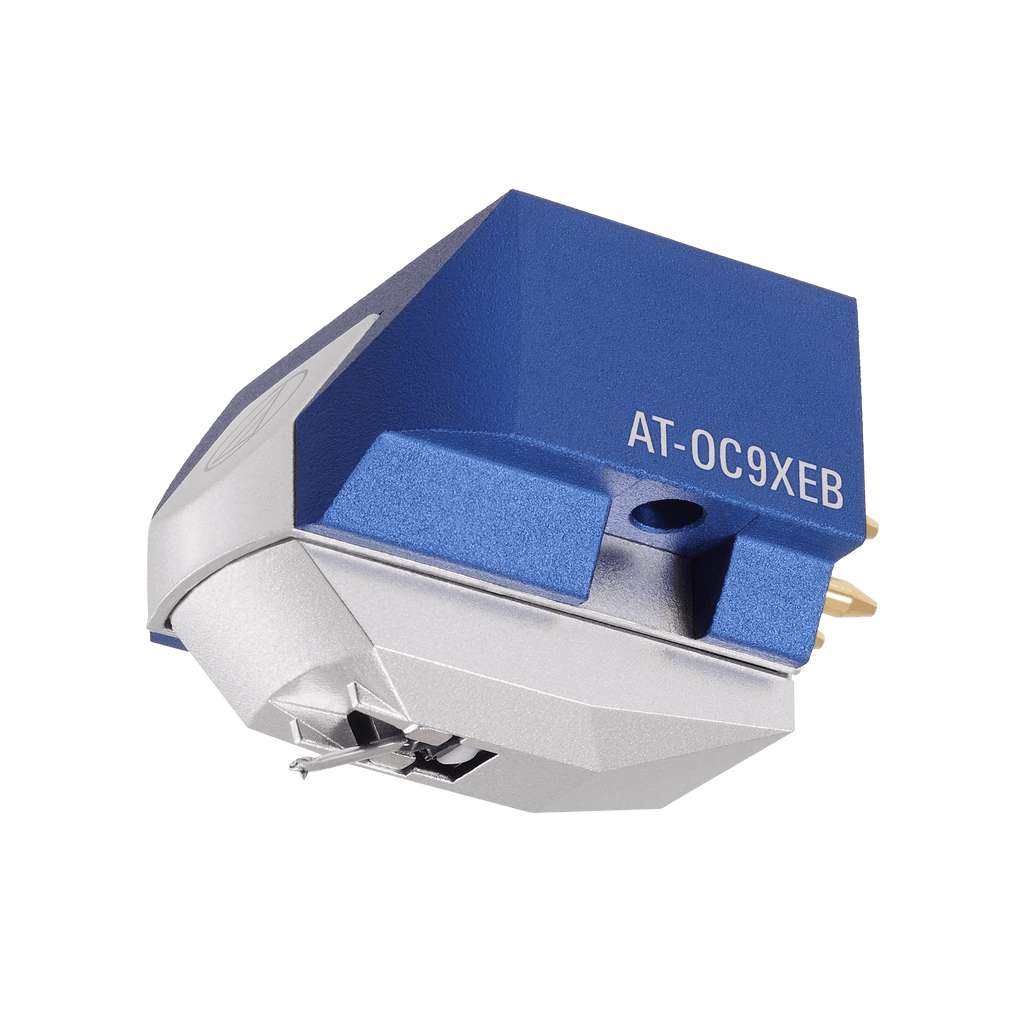

Audio-Technica AT-OC9XEB Dual Moving Coil Cartridge

Discover refined vinyl playback with Audio-Technica's AT-OC9XEB, featuring a bonded elliptical stylus (0.3 x 0.7 mil) on aluminum cantilever for accurate tracking, reduced inner-groove distortion, and balanced frequency response. This dual moving coil cartridge delivers 0.32 mV output with 25 dB channel separation via PCOCC coils in reverse V-formation, neodymium magnets, and pure-iron yoke for clean, detailed sound reproduction.

Compatible with 1/2-inch mount turntables through pre-threaded aluminum body, it provides solid performance across 20-30,000 Hz. Moving coil phono preamp with minimum 100 Ohm loading required.

Ideal for vinyl lovers wanting high-fidelity detail and easy installation in a low-resonance 7.6 g housing.

Key Features

• Bonded elliptical stylus (0.3 x 0.7 mil) for precise tracking

• Dual moving coil design with independent left/right channels

• PCOCC coils in reverse V-formation for minimal distortion

• Aluminum cantilever and body for vibration-free performance

• Neodymium magnet and pure-iron yoke for enhanced magnetic field

• Pre-threaded inserts for simple 1/2-inch mounting without nuts

• Excellent channel separation and stereo imaging

Technical Specifications

• Type: Dual Moving Coil stereo cartridge

• Stylus: 0.3 x 0.7 mil bonded elliptical, round shank

• Output Voltage: 0.32 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-30,000 Hz

• Channel Separation: 25 dB (1 kHz)

• Tracking Force: 1.8-2.2 g (2.0 g standard)

• Weight: 7.6
