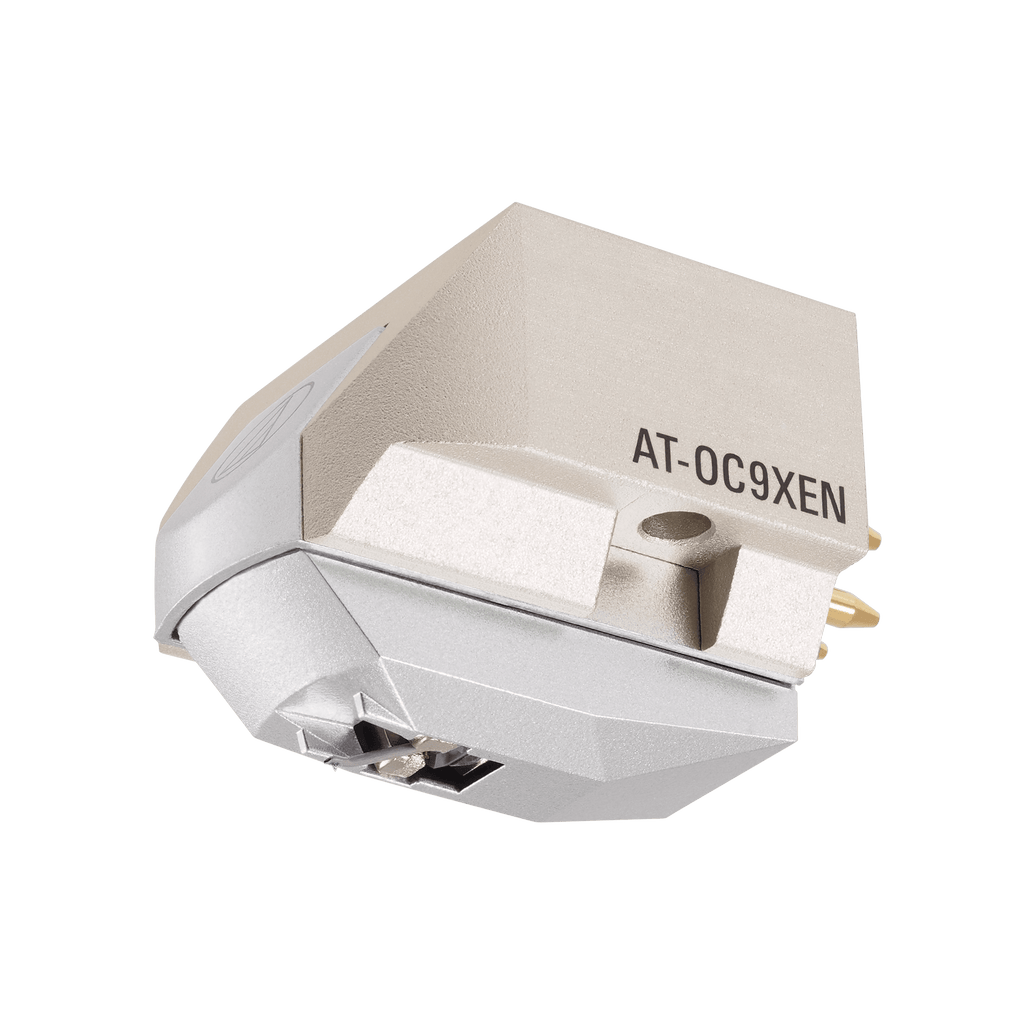

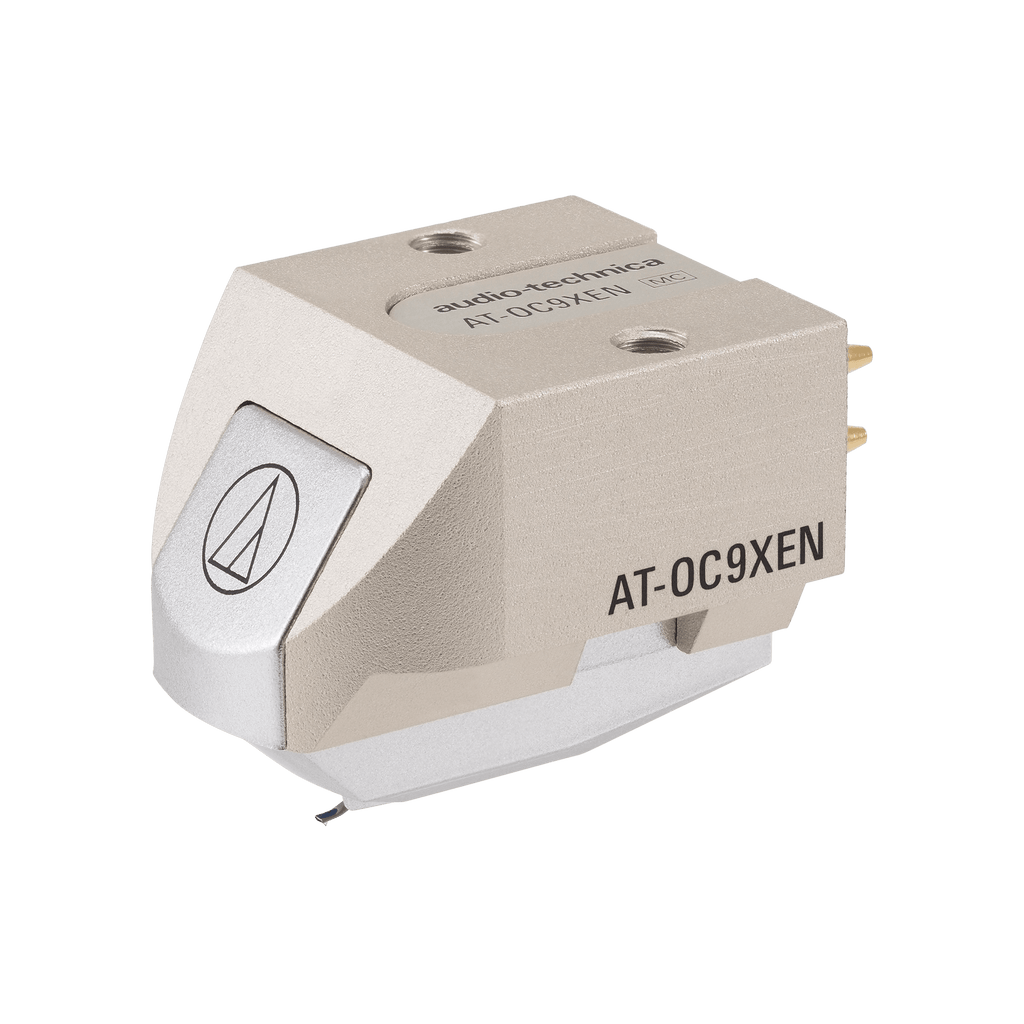

Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge

Experience audiophile-grade vinyl playback with Audio-Technica's AT-OC9XEN, featuring a nude elliptical stylus (0.3 x 0.7 mil) for precise groove tracing, minimal distortion, and exceptional detail across frequencies. This dual moving coil cartridge delivers 0.35 mV output with 25 dB channel separation through neodymium magnets, pure-iron yoke, and PCOCC coils in reverse V-formation for dynamic, transparent sound.

Compatible with 1/2-inch mount turntables via pre-threaded aluminum body, it offers wide frequency response (20-30,000 Hz) and low-impedance design. Requires compatible moving coil phono preamp.

Perfect for vinyl enthusiasts seeking ultimate clarity and precision in a durable 7.6 g housing. theaudio+1

Key Features

• Nude elliptical stylus (0.3 x 0.7 mil) for superior tracking

• Dual moving coil design with independent channels

• PCOCC coils in reverse V-formation for low distortion

• Aluminum cantilever and body for resonance-free performance

• Neodymium magnet and pure-iron yoke for strong field

• Pre-threaded inserts for easy 1/2-inch mounting

• Exceptional channel separation and dynamic range

Technical Specifications

• Type: Dual Moving Coil stereo cartridge

• Stylus: 0.3 x 0.7 mil nude elliptical

• Output Voltage: 0.35 mV (1 kHz, 5 cm/sec)

• Frequency Response: 20-30,000 Hz

• Channel Separation: 25 dB (1 kHz)

• Tracking Force: 1.8-2.2 g (2.0 g standard)

• Weight: 7.6 g
