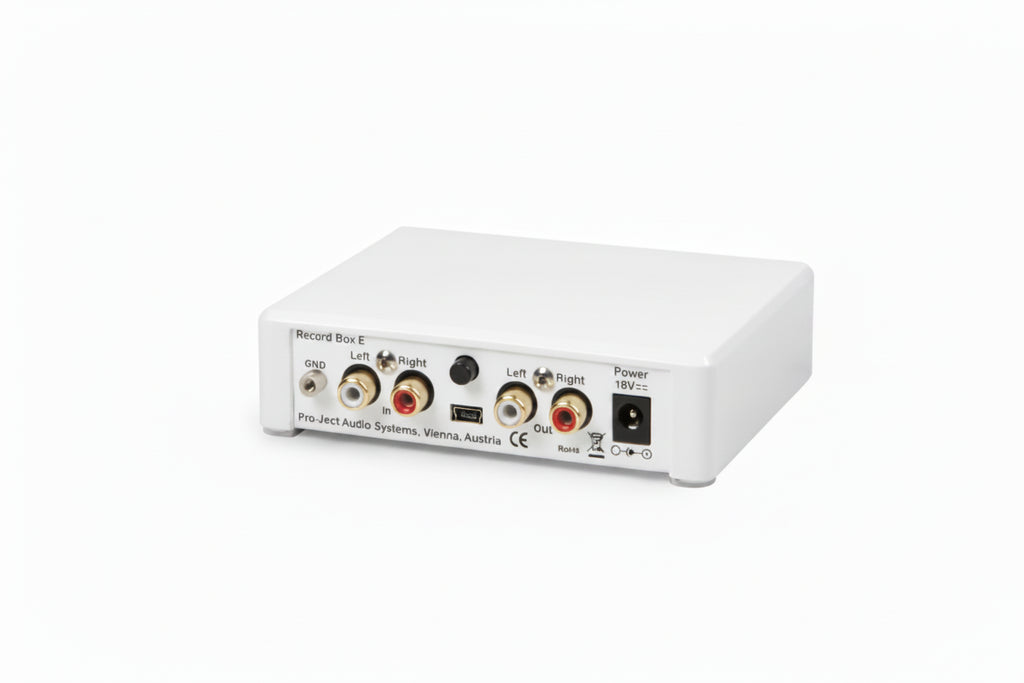

Record Box E: Pure vinyl listening pleasure plus recording functionality!

Record Box E is an high-quality phono preamplifier, that offers the possibility to convert your valuable vinyls into computer music data. Record Box E accepts both MM & MC cartridges and gives audiophile music experience at an entry level price. The integrated A/D converter operates with Windows and MAC operating systems and connects via USB to your computer. Therefore your valuable vinyl collection can be digitised, especially for use in portable music players. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Record Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Record Box E can be connected easily to a line-input (AUX etc) of your amplifier.

Features

• Amplification and RIAA equalisation for MM & MC
• Design principle inspired by Dr. Sykora
• Digitalisation of vinyl for recording direct to USB with suitable recording programs
• Automatic recognition, no additional drivers needed
• Runs on Windows®, Mac OS® & Linux operating systems
• SMD circuitry with special low noise components
• Internal metal shielding
• Small size allows installation close to record player
• Gold plated RCA connection sockets
• Outboard power supply included
• Black or White casing

• Technical Specifications

  Input capacitance/input impedance	MC: 100 ohms/120 pF (low output MC) MM: 47kohms/120 pF (MM or high output MC)
  Gain, MM / MC	40 dB / 60 dB
  Output voltage typically	300 mV/1 kHz bei 3 mV/1 kHz (MM) oder 0.3 mV/1 kHz (MC)
  Max. output	9,5 V (1 kHz)
  Noise floor MM / MC	94 dB (A weighted) / 75 dB (A weighted)
  THD MM / MC	<0,01% / <0,05%
  RIAA-equalisation curve accuracy	20 Hz - 20 kHz / max. 0.5 dB
  A/D converter	Burr Brown PCM2904 16-Bit Delta Sigma
  Sampling rates	32, 44,1 and 48 kHz
  USB output	5 pin Mini b Buchse
  USB signal	digital serial data protocol USB 1.1
  Operating systems	Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Mac OS, Linux
  Input / Line output	1 pair RCA/Cinch sockets each
  Outboard power supply	18 V / 500 mA DC, suitable for your country's mains supply
  Power consumption	100 mA DC
  Dimensions W x H x D (D with sockets)	120 x 32 x 100 (115) mm
  Weight	250g without power supply
